Model Information

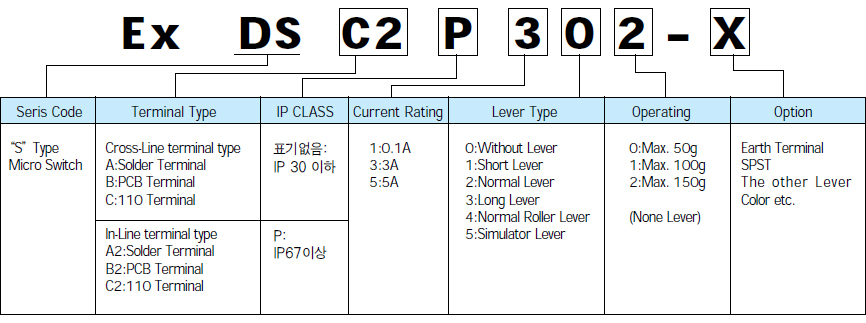

Micro S/W(DS) model information
DSA / DSC TYPE
| ACTION | RATING | ||
|---|---|---|---|
| DSA/C 1XX | DSA/C 3XX | DSA/C 5XX | |
| SPST SPDT |
0.1A 250V AC 0.1A 30V DC |
3A 250V/125V AC 3A 30V DC 0.4A 125V DC |
5A 250V/125V AC 5A 30V DC |
CHACTERISTICS
| OPERATING FORCE |
RELEASE FORCE |
PRE TRAVEL |
OPERATING POSITION |
MOVEMENT DIFFERENTIAL |
|---|---|---|---|---|
| MAX 150 gf | MIN 20 gf | MAX 0.6 mm | 8.4±0.4 mm | MAX 0.2 mm |
LEVER TYPE
DSPA302
Water proof type
Water proof type
CIRCUIT CHACTERISTICS
| ACTION | RATING |
|---|---|
| SPDT | 2A 250V AC 3A 125V AC |
DSC2102
CIRCUIT CHACTERISTICS
| ACTION | RATING |
|---|---|
| SPST | 0.1A 250V AC 0.1A 30V DC |
DSSA142-1
CIRCUIT CHACTERISTICS
| ACTION | RATING |
|---|---|
| SPDT | 0.1A 250V AC 0.1A 30V DC |
DSSA142
CIRCUIT CHACTERISTICS
| ACTION | RATING |
|---|---|
| SPDT | 0.1A 250V AC 0.1A 30V DC |
